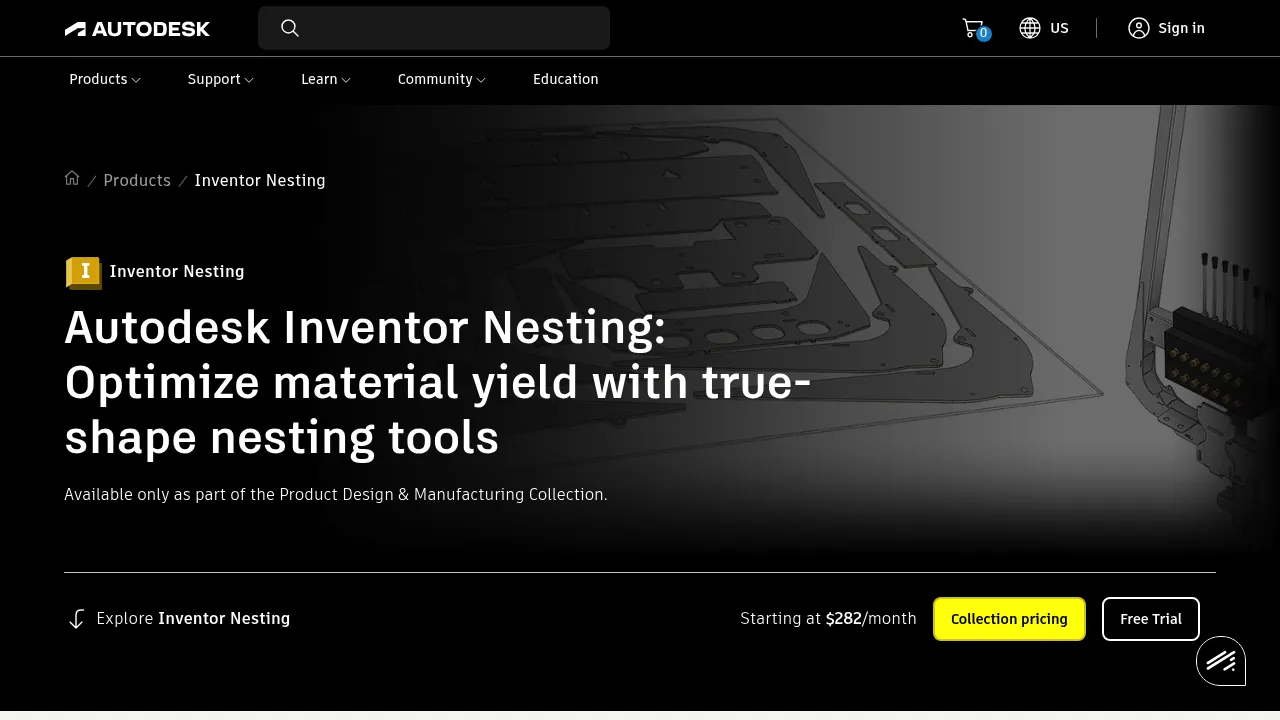

Autodesk Inventor Nesting

Name: Autodesk Inventor Nesting
Brand: Autodesk
Rating: 4.4 (742 reviews)

Autodesk Inventor Nesting is a CAD-embedded 2D true-shape nesting add-on for Autodesk Inventor that lays out flat patterns onto sheet or roll stock to improve material utilization and export DXF files for downstream cutting workflows.

Est 1982|Valuation $48.3B|Raised $5.5B

LinkedIn 1.1M|Website|FTEs 14,300|HQ San Francisco, California, US

Published May 19, 2026

01Common complaints

- If direct CNC or machine communication and production-grade NC output are required as the primary deliverable: Inventor Nesting is oriented to nesting studies and exports rather than direct machine interfaces. - If the shop floor process depends on specialized nesting constraints (clamps, common-line cutting, bevel control, advanced remnant management, or proprietary machine strategies) best supported by dedicated nesting suites such as SigmaNEST, ProNest, or TruTops. - If an organization is not already using Inventor: purchasing Inventor or PDMC primarily to obtain nesting is likely to produce a high incremental cost relative to standalone nesting tools that accept DXF/STEP and integrate with existing CAM/machine ecosystems. - If cost sensitivity is high and bundling forces an organization into a broader subscription than needed. **Limitations noted in product documentation and community sources** - Inventor Nesting does not support Inventor Model States (documented in the Inventor Nesting 2025 readme). This limitation affects users relying on Model States to represent configurable variants. - Not a full CNC solution: Inventor Nesting frequently requires external CAM/post processors to produce machine-ready NC code and to address machine-specific constraints. - Reporting customization: Users have questioned the ease of editing report formats, indicating limited flexibility or non-obvious customization steps. - User control over nesting: Community reports indicate that manual overrides (for example, rotation and orientation control) can be limited or cumbersome in some scenarios. **Roadmap visibility** - A public, detailed roadmap for Inventor Nesting features and timelines was not found in the materials reviewed. Community posts reference historical enhancements but do not provide a current forward-looking roadmap with firm dates.

Deal disqualifiers (poor fit)

Requirement for a turnkey, machine‑specific nesting and post‑processing solution with deep production constraints and machine‑specific post‑processors.
Inability to justify the cost of the PDMC when nesting is the only required feature.

02Why they buy

- CAD-embedded workflow: Nesting is accessible via an Inventor ribbon and uses Inventor geometry and flat patterns directly. - Nesting studies and comparisons: The tool supports running multiple studies to compare material yield and cost outcomes for design or quoting decisions. - Orientation and grain constraints: Features exist to restrict part orientations for grain direction, aesthetics, or structural considerations. Where competing products may provide stronger production features: - Dedicated nesting and CAM suites typically provide more advanced production tooling, machine integration, and operational features than a CAD-embedded nesting utility.

03Field reports

Caveat about review coverage: Most public review platforms cover Autodesk Inventor (the CAD platform) rather than Inventor Nesting as a separate SKU. As a result, feedback on nesting commonly appears as feature-level mentions within broader Inventor reviews.

Positive sentiment (examples)

A TrustRadius Inventor review praises nesting as a time saver for sheet-metal workflows: “Inventor also saves our most of calculation time by using simple command called nesting.” (TrustRadius reviewer, Aug 1, 2023)
Autodesk learning content presents Inventor Nesting as a CAD-embedded tool focused on optimizing yield from flat raw materials and producing DXF outputs for manufacturing.

Negative sentiment / complaints (examples)

- The same TrustRadius reviewer flagged stability issues for Inventor more broadly: “Inventor crash unexpectedly company should improve it.” While not necessarily caused by the Nesting add-in, CAD stability affects the reliability of an embedded nesting workflow. - Community discussions (Reddit and Autodesk forums) include recurring themes: - Availability and installation confusion: users report the nesting utility not appearing after install or uncertainty about whether it is included with Inventor downloads; Autodesk Community responses commonly direct users to Autodesk Account or the Autodesk desktop app to install the add-in. - Difficulty overriding nesting outcomes: some users report challenges when attempting to steer nesting results (for example, setting rotation/orientation constraints), which can lead to less efficient nests in some cases. - Workflow gaps for production cutting: reports indicate Inventor Nesting may be effective for producing nests but still requires production-focused CAM packages (e.g., ProNest) to drive specific tables or toolchains. - Export friction: exporting nested DXFs from Inventor into downstream CAM/nesting platforms can introduce issues with leads, contour settings, and layer mappings. - Reporting customization limits: user questions about editing report formats suggest either limited flexibility or non-obvious customization steps.

Why customers choose it (inferred from sources)

Tight Inventor integration (ribbon and tab interface; associativity concepts).
Faster early-stage nesting studies without launching a separate application.
DXF export and support for multiple nest studies and cost comparisons.

Why some customers keep or switch to alternatives

Organizations may retain ProNest, SigmaNEST, TruTops, or similar systems for:
- Machine post-processors and production-ready NC code generation
- Advanced machine constraints (clamps, microjoints, beveling, common-line cutting)
- Production scheduling, quoting, and ERP integration present in higher-end nesting suites

Autodesk customer story

- Autodesk publishes a customer story that describes how an organization used Inventor Nesting to create nest layouts and export DXF for manufacturing processing. - Critical evaluation: - These stories emphasize intended workflows but typically lack independent validation, detailed baseline metrics (previous scrap rates), and controlled measurement methodology. - They are useful for understanding supported workflows (design → nest → DXF export) but provide limited evidence for quantified ROI without third-party corroboration.

Training and educational case material (Autodesk University)

Autodesk University course materials describe workflows such as nesting assemblies, using DXF input, maintaining associativity, exporting nests, and then generating toolpaths using Autodesk HSM/CAM workflows.
Critical evaluation:
- These materials are instructional and not independent success metrics.
- They do indicate the intended scope and boundaries (what is handled inside Inventor versus what is expected to be handled in CAM).

04Best fit

Company size (practical fit ranges)

Typical fit: mid-sized manufacturing organizations with a dedicated design group that uses Autodesk Inventor.
Smaller shops can also be viable customers if they are already committed to Product Design & Manufacturing Collection (PDMC) licensing; it is less attractive where PDMC would be purchased solely for nesting.

Industries and verticals

Sheet metal fabrication (laser, plasma, waterjet)
Industrial equipment and machinery OEMs
Enclosures, chassis, brackets, and frames (areas with heavy Inventor sheet‑metal usage)
Wood and panel cutting can be addressed conceptually by 2D nesting, but many wood shops prefer dedicated nesting suites optimized for routers and material handling.

Roles and personas

Decision makers: engineering manager, manufacturing engineering lead, operations manager
End users: sheet metal designers, mechanical designers, manufacturing engineers

Pain points addressed

Reducing scrap and improving yield
Faster iteration between design revisions and nesting layouts
Standardizing DXF outputs and nesting studies for quoting and planning

Qualification criteria (suitable fit)

The organization already runs Autodesk Inventor and manages Autodesk account licensing.
The primary objective is yield optimization and DXF export rather than complete NC generation and machine control within the same tool.

05The pitch

What the product does (objective value proposition)

Autodesk Inventor Nesting is a CAD-embedded "true-shape" 2D nesting add-on for Autodesk Inventor, focused on laying out flat patterns (sheet metal and other 2D profiles) onto sheet or roll stock to improve material utilization and reduce scrap. It supports creating multiple nesting studies, comparing outcomes and costs, and exporting results (commonly DXF) for downstream cutting workflows.

Target market and positioning

- Primary users: mechanical designers, sheet-metal designers, and manufacturing engineers who already design in Autodesk Inventor and want to generate cut-ready layouts (or near cut-ready layouts) without leaving the CAD environment. - Positioning: presented as an integrated nesting option for Inventor-centric teams—particularly job shops and OEM fabrication teams that value associativity with design changes and prefer to run nesting tasks inside the CAD environment rather than switching to a separate nesting tool for early planning.
