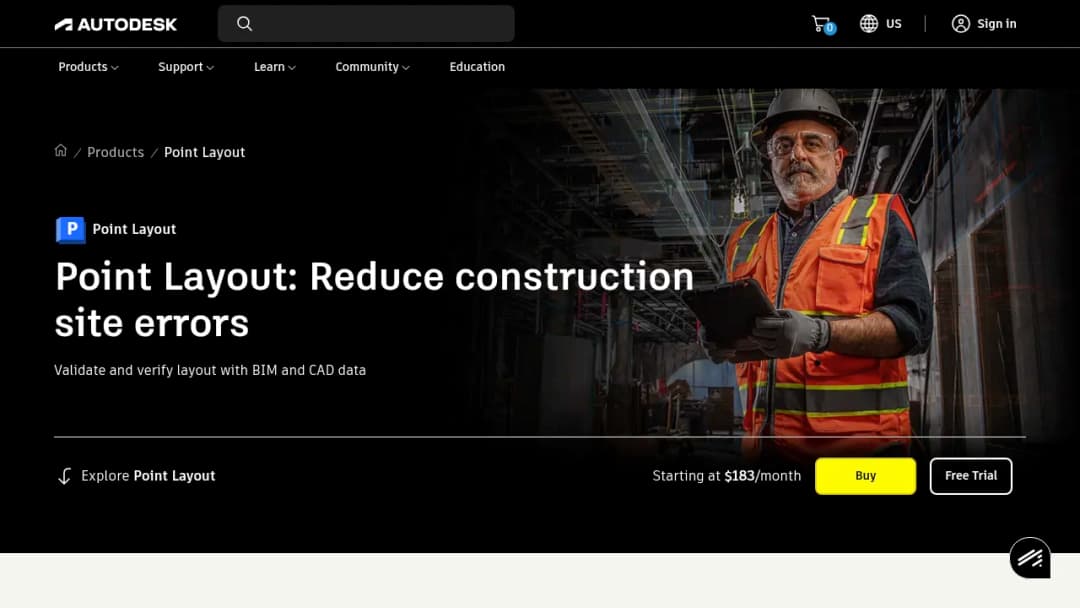

Autodesk Point Layout is an add-on application that creates and manages layout points from BIM/CAD models inside Revit, AutoCAD, and Navisworks and exports those points to field layout hardware and software for layout execution, QA/QC, and as-built import.
Published Oct 15, 2026
Autodesk University handouts and class materials include practitioner statements endorsing Point Layout for specific workflows (for example, Revit-based point creation). Conference and vendor-adjacent materials sometimes include strong positive language; those materials are educational or vendor-adjacent and should not be treated as independent validation.
Public discussion channels show both neutral and critical themes. Common critical themes are often ecosystem-level and include subscription and licensing concerns associated with Autodesk products generally; these concerns are relevant because Point Layout is typically acquired in addition to core authoring tools.
A vendor/partner success story documents an evaluation approach and phased investment in Point Layout plus a total station. The case study is informative about phased adoption but lacks independently verified ROI metrics and clear baseline vs. post-adoption performance data.
Autodesk University class materials provide detailed workflow guidance (for example, Revit → Point Layout → robotic total station; BIM to layout and validation). These materials are useful for operational guidance but are educational or vendor-adjacent and do not constitute independent benchmarking.
Get a comprehensive analysis of Autodesk Point Layout including market position, competitive landscape, adoption trends, and peer benchmarks.
Download full report →Point Layout has limited presence on mainstream SaaS review platforms under its own product listing (for example, TrustRadius and G2). Search results for Autodesk typically return broader products such as AutoCAD rather than a dedicated Point Layout product listing. As a result, third-party, aggregated review data specific to Point Layout is limited.
More authentic first-hand user content relevant to Point Layout is available in these channels:
Autodesk Point Layout is an add-on application used to create and manage layout points from BIM/CAD models inside Autodesk authoring tools (primarily Revit, AutoCAD, and Navisworks) and then export those points to field layout hardware and software (for example, robotic total stations) and associated workflows. Autodesk describes the product as a way to bring model coordinate systems to field layout workflows, supporting export to formats compatible with robotic total stations, QA/QC checking, and importing measured as-built locations back into the model or project workflow.
The workflow is integrated with Autodesk’s construction cloud ecosystem (historically BIM 360 Layout; now part of Autodesk Construction Cloud): points are authored in office tools and then synchronized or shared for field execution and verification.
Primary purpose: reduce field layout errors and rework by driving layout from coordinated BIM/CAD models and maintaining traceability between modeled intent and installed reality.
