Synopsys Design Compiler Graphical

Name: Synopsys Design Compiler Graphical
Brand: Synopsys

Synopsys Design Compiler Graphical is an RTL synthesis tool that performs physically-aware synthesis to produce gate-level netlists and physical guidance for downstream place-and-route tools, with features focused on timing QoR, congestion awareness, early physical visualization, and multi-corner/multi-mode optimization.

Est 1986|Raised $2.1B

LinkedIn 764K|Website|Web traffic 527K|FTEs 28,537

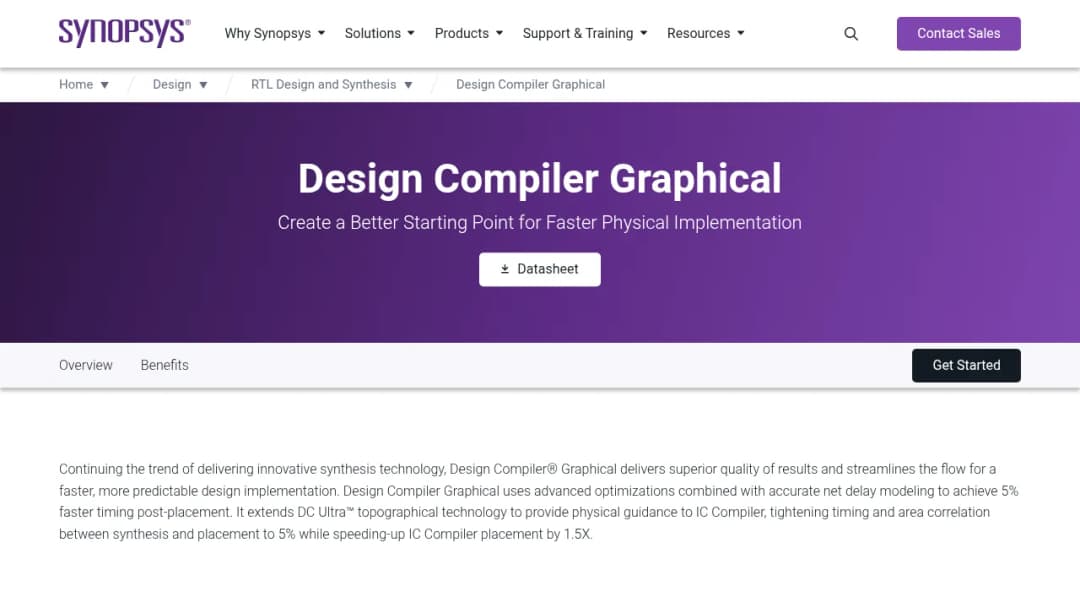

Synopsys Design Compiler Graphical screenshot

Published May 16, 2026

01Common complaints

1. Small teams, early prototyping, or cost-constrained projects - For proof-of-concept RTL or non-advanced-node work, the commercially licensed physically-aware features may not provide sufficient return on investment. - Community commentary frequently notes enterprise EDA licensing can be expensive and difficult to trial for small teams. 2. Organizations standardized on Cadence toolchains - Where downstream place-and-route and signoff workflows are Cadence-centric, Cadence Genus and Innovus integration may present lower operational friction. 3. Teams committed to unified RTL-to-GDS flows - Organizations investing in Synopsys Fusion Compiler for a unified implementation approach may consider DCG as a transitional tool rather than a long-term center of the flow. 4. Organizations without CAD/flow engineering resources - Teams without CAD support and methodology resources may face a steeper onboarding and enablement burden when adopting DCG.

Deal disqualifiers (poor fit)

Organizations unable to justify enterprise licensing costs relative to open-source or simpler flows
Organizations without access to a downstream Synopsys implementation environment, where DCG’s physical guidance is most valuable
Organizations that require extensive publicly available training materials and minimal enablement effort; in such cases, alternative tools or vendors with broader public resources may be preferable

Publicly visible limitations

Roadmap details and deep operational documentation are often available primarily through customer portals and support channels, limiting public visibility into detailed usage guidance.
Limited public review transparency makes it difficult to benchmark support quality and QoR across diverse designs without vendor engagement and pilot projects.

Vendor-acknowledged / implied limitations

The vendor’s promotion of Design Compiler NXT and Fusion Compiler as next-step offerings suggests DCG is a mature product within the existing product family and that newer products are being positioned for future nodes and workflows.

Community-reported pain points

Documentation and usability concerns for certain workflows
Complexity in initial tool setup (libraries, link paths, environment configuration)

02Why they buy

Capabilities cited in vendor documentation (not independently validated)

Generation of physical guidance targeted at downstream Synopsys place-and-route tools to improve synthesis-to-placement correlation.
Congestion prediction and congestion-driven optimization applied during synthesis.
Early physical visualization and cross-probing between RTL/schematics/timing/physical views.
Support for multi-corner/multi-mode (MCMM) synthesis workflows.

Areas where competitors may have advantages

Cadence Genus emphasizes high-capacity parallel scaling and tight integration with Cadence Innovus, which may be preferable for organizations standardized on the Cadence ecosystem.

03Field reports

Review-platform coverage reality (important limitation)

Mainstream SaaS review platforms typically have limited or no substantive coverage for niche EDA tools such as Design Compiler Graphical. Contributing factors include NDA-heavy environments, restricted tool access, and a small base of eligible reviewers.

Public review outlets that mention Synopsys often do not distinguish DCG specifically from other Synopsys offerings.

Community/user quotes (representative themes)

Public forum quotes and community discussions frequently relate to Synopsys synthesis tools and GUI/CLI workflows in general rather than DCG specifically. Representative themes include: - Preference in production for command-line automation and use of graphical interfaces primarily for debugging. - Frustration with documentation quality and navigability in some Synopsys product documentation. - Steep learning curve and need for substantial flow engineering relative to some competitor offerings. - Specific usability issues such as library/link configuration that can lead to setup errors. - Synthesis behavior that affects hierarchy (e.g., flattening) and can surprise users expecting strict hierarchy preservation. These themes are drawn from public forum entries and community posts and are qualitative in nature.

Reasons cited by vendor and ecosystem for choosing DCG

Public vendor materials and ecosystem commentary emphasize:

Integration with Synopsys RTL-to-GDS flows (tooling chain that includes DCG and IC Compiler)
Congestion prediction and physically-guided optimization capabilities
Support for multi-corner/multi-mode (MCMM) synthesis
Early physical visualization capabilities

Reasons organizations may consider alternatives

Common considerations for choosing competitor tools or migrating include:

Cost and licensing complexity (particularly for smaller teams)
Usability and perceived documentation quality
Organization-standard toolchains (e.g., Cadence-centric flows for teams standardized on Cadence tools)
Migration to newer vendor tools that consolidate RTL-to-GDS workflows (e.g., Design Compiler NXT or Fusion Compiler)

1) Renesas (automotive ICs) — vendor announcement

Synopsys issued a vendor announcement stating Renesas adopted Design Compiler Graphical and reported routing congestion reduction and timing/area improvements that contributed to faster closure.

Critical evaluation: This is a vendor press release. Quantitative metrics and independent validation are not included in the public announcement.

2) Samsung (mobile SoCs) — vendor announcement

Synopsys announced that Samsung deployed DCG for mobile SoC development to address congestion optimization and timing concerns.

Critical evaluation: This is a vendor announcement that does not provide independent measurement methodology or detailed metrics in the public domain.

3) Graphcore (workflow evidence)

Synopsys materials referencing Graphcore indicate Design Compiler was part of broader RTL-to-GDS flows used by industry teams.

Critical evaluation: This supports the broader market reality that Synopsys tools are part of many enterprise digital flows; however, these references do not isolate DCG-specific contributions or provide independent QoR benchmarking.

04Best fit

Company sizes

Best fit: mid-to-large semiconductor organizations performing advanced ASIC/SoC design work, typically with a substantial engineering organization in the broader silicon team and dedicated CAD/flow support.
Also fits: well-funded startups developing advanced-node chips that can support enterprise licensing and enablement.

Industries / verticals

Mobile SoCs, automotive ICs, AI accelerators, networking, compute, and consumer electronics—applications where power, performance, area (PPA) and schedule are critical.

Roles/personas

Decision makers: Director/VP of Physical Design, CAD/Methodology leads, SoC program managers
Core users: RTL/synthesis engineers, physical-design engineers, CAD/flow engineers

Pain points DCG addresses

Late-stage timing and congestion issues
High iteration counts between synthesis and P&R
Need for early physical debug and visualization

Deal qualifiers (good fit)

Organizations already running, or planning to run, a Synopsys digital implementation flow (Design Compiler family → IC Compiler II)
Programs with high sensitivity to synthesis-to-P&R correlation and iteration cost (large designs, advanced process nodes)

05The pitch

What the product does (objective value proposition)

Synopsys Design Compiler Graphical (DCG) is an RTL synthesis tool that implements a physically-aware synthesis flow. The tool generates a gate-level netlist and produces physical guidance intended for downstream place-and-route tools (historically Synopsys IC Compiler II) to improve correlation between synthesis estimates and post-place-and-route results and to reduce iteration cycles. The vendor describes features that include timing quality-of-result (QoR) focus, congestion awareness, early physical visualization and debug, and multi-corner/multi-mode optimization. Vendor-reported outcomes include: - Vendor-reported improvement in timing QoR (varies by design, libraries, process node, and constraints). - Vendor-reported correlation improvements between synthesis and placement for timing/area/power, and reported placement speed improvements when using generated guidance. - Vendor-reported runtime improvements on select hardware configurations. Reference material for vendor claims includes official product overview and datasheet.

Target market and market positioning

- Primary users: digital/RTL and synthesis engineers working on ASIC/SoC implementations, particularly those operating at advanced process nodes where wire RC, congestion, and physical effects significantly influence results. - Positioning: a commercial, physically-aware synthesis step intended to improve predictability relative to purely logical synthesis flows. - Adjacent/next-step products: Synopsys Design Compiler NXT and Fusion Compiler are highlighted by the vendor as newer offerings that extend the physically-aware synthesis concepts embodied in DCG, indicating DCG is part of a broader product evolution toward greater RTL-to-GDS convergence.
